AMSOIL PowerCore Air Filter Product Information

PowerCore® Air Filters
AMSOIL offers premium air filters that utilize PowerCore™ filtration technology for Ford 6.0L Diesel PowerStroke™ and GM H2 Hummer 6.0L Vortec™ applications. The rugged structure of PowerCore™ filters features an innovative, layered, fluted filter media, which allows air to enter an open flute while forcing it out an adjacent flute, allowing only clean air into the engine. Dirty air is effectively filtered and cleaned in only one pass through the media.

See Pricing Information or Place an Order through the AMSOIL Online Store

Filters include:

P603577 - PowerCore® Air Filter for Ford 6.0L Diesel Powerstroke™ Application

FFK60 - Fuel Filter for Ford 6.0L Diesel Powerstroke™ Application
EaO88 - Oil Filter for Ford 6.0L Diesel Powerstroke™ Application
PCFH2 - PowerCore® Air Filter for H2 Hummer 6.0L Vortec™ Application
PCF73 - PowerCore® 7.3L PowerStroke Filter Replacement Cartridge
P548070 - Freightliner M-2 - Primary Application
P544432 - Freightliner M-2 - Secondary Application
P606121 - John Deere 6020 Series - Primary (AL150288)
P606119 - John Deere 6020 Series - Secondary, 4 Cylinder (AL119839)
P606120 - John Deere 6020 Series - Secondary, 6 Cylinder (AL150285)

More Power in PowerCore®
In July 2004 AMSOIL introduced new PowerCore air filters for Ford 6.0L Diesel PowerStroke™ and H2 Hummer 6.0L Vortec™ engines. The rugged structure and fluted media construction of these PowerCore filters provide increased contaminant holding capacity, more efficiency and eliminate media movement.

PowerCore Technology
Donaldson PowerCore air filters are widely known in the heavy-duty market for being reliable, premium products. Their flawless repuation and proven performance make Donaldson filters a perfect match for AMSOIL.

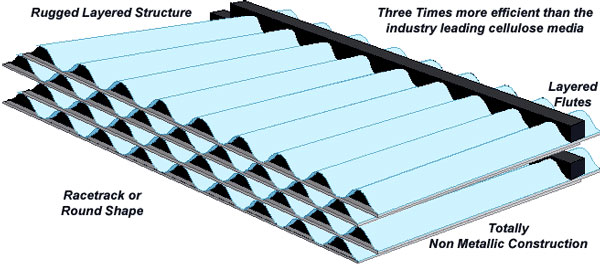

In filters featuring PowerCore technology, the media is formed into flutes. These flutes are layered to give tight, rugged structure to the filter. The fluted channels are alternately sealed allowing air to enter through an open flute and forcing it to exit out an adjacent flute. Dirty air travels in and is filtered in one pass through the media.

Superior Performance
The superior performance of the PowerCore air filtration products for Ford 6.0L PowerStroke Diesels and H2 Hummer 6.0L Vortecs has prompted AMSOIL to expand its offering of Donaldson filtration products to include the entire line of PowerCore air filters. New primary and safety PowerCore filtration products are available for John deere and Freightliner applications, as well as a new air induction system for Ford 7.3L PowerStroke Diesel trucks.

See the new 7.3L PowerStroke Air Induction System (PCIS73)

Donaldson P603577 PowerCore® Technology Air Filter for Ford 6.0L Diesel PowerStroke™ Applications (P603577, SDF88, FFK60)
	2003/2004 Ford Excursion w/6.0L Turbo Diesel 2003/2004 Ford Super Duty Pickups w/ 6.0L Turbo Diesel 2003/2004 Ford Vans with 6.0L Turbo Diesel Engine 2003/2004 IHC VT365 (6.0L) Turbo Diesel Engine
AMSOIL PCF-H2 PowerCore® Technology Air Filter for GM H2 Hummer 6.0L Vortec™ Applications:
	2003/2004 GM Hummer H2
AMSOIL FFK-60 Fuel Filter for Ford 6.0L Diesel PowerStroke™ Applications
	The AMSOIL FFK60 Fuel Filter incorporates both a primary and secondary filter for maximum fuel cleanliness. The primary 10 micron filter, located in the Horizontal Fuel Conditioning Module (HFCM), performs initial fuel cleansing before sending the clean pressurized fuel to secondary four micron filter, mounted to the oil filter housing. The secondary fuel filter includes a fuel pressure regulator and an orifice on top of the housing that bleeds air out of the housing and back to the fuel tank. Following its trip through the secondary filter, fuel is returned to the HFCM, where it is either directed to the tank or returned to the primary filter.
AMSOIL EAO88 Oil Filter for Ford 6.0L Diesel PowerStroke™ Applications
	A premium, high efficiency cartridge oil filter utilizing nanofiber technology for Ford 6.0L diesel engines ranging from 2003 to 2006. The new EaO88 is the world’s first oil filter cartridge for diesel applications using advanced submicron full synthetic media. The EaO88 provides an efficiency of 98.7% at 16 microns, significantly higher than the OEM filter. The rigid construction of this filter is due to a polymeric center tube and end caps, along with its proprietary composition incorporating special grade nanofiber synthetic media, enabling the filter to last up to 1 year or 25,000 miles when used in conjunction with AMSOIL synthetic motor oil. Because of its improved oil flow, an additional benefit of this synthetic filter media is that oil is delivered to key engine components quicker, thus enhancing the lubrication process during cold weather starts.
.

PowerCore™ is a trademark of the Donaldson Company Inc. These filters are manufactured by Donaldson for AMSOIL®.

Advantages to the PowerCore™ Filters

Straight-through air flow
Less Restriction
Increased Capacity
Increased Efficiency
Shape flexibility
Increased system design options

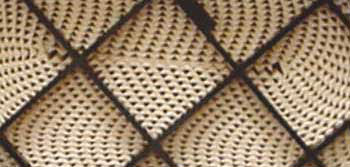

Layered media structure
Non-metallic

Premium Air Filter Construction

Less Restriction with Straight-Through Airflow

Additional Advantages to the PowerCore™ Filters

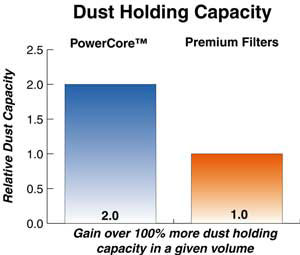

Increased holding capacity per volume
Three times more efficient than the industry leading cellulose element
Less restriction
Utilizes RadialSeal™ sealing for easy service

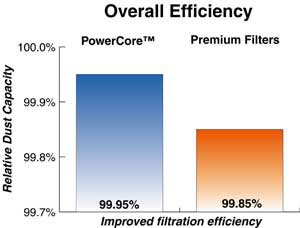

99.95% efficiency
Metal-free construction allows for incineration
